Regular price 1.499,00 € Sale price1.199,00 €
/


SORRY, the Smart Home Panels have been sold out, let's expect them in the near future!

Zendure Smart Home Panel: Intelligent Power Management for Your Home

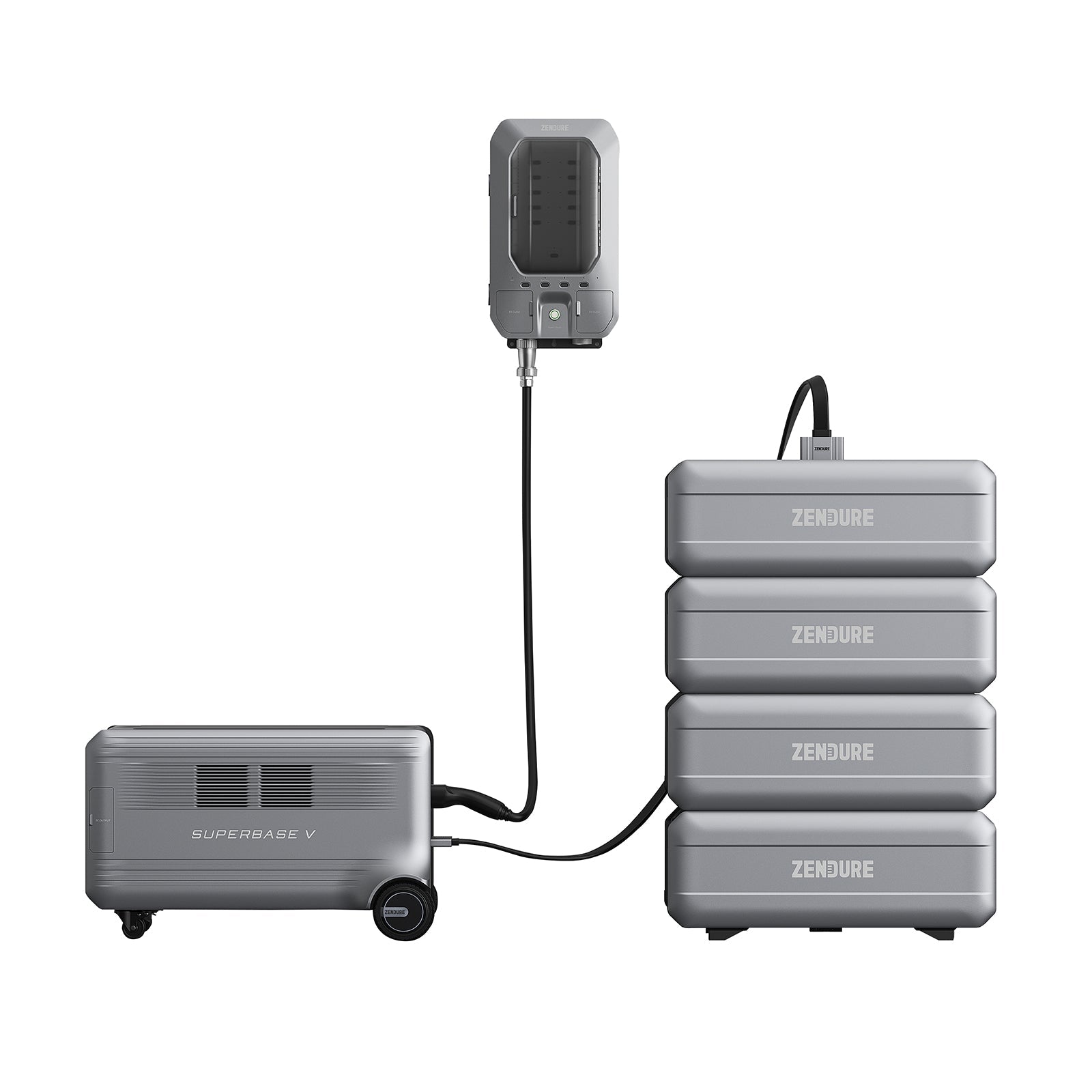

The Zendure Smart Home Panel is an innovative solution designed to bring smart power management to your home. It seamlessly integrates with the Zendure SuperBase V, a powerful and portable power station. See more features below!

  • Transfer Switch and Dock: The panel serves as a transfer switch and dock for the SuperBase V. You can connect the SuperBase V to your home’s electrical circuits and supply power throughout the house.
  • Intelligent Energy Management: With the Zendure app, you can monitor, manage, and customize your energy use. It provides real-time data on power consumption and allows you to schedule power usage based on your needs.
  • Solar Power Compatible: The SuperBase V can charge using solar power alone. You can use the included MC4 to XT90 cable to connect the SuperBase V to any compatible solar panel.
  • Expandable: You can increase the capacity of the SuperBase V by adding up to four B6400 satellite batteries (6.4 kWh each). The design includes removable rubber strips on top to stack extra batteries securely.
Name Zendure Smart Home Panel
Model ZDSHPEV2
Dimensions 285×119×492 mm (11.2"x4.7"x19.4")
Weight 8.8 kg (19.4 lbs)
Rated Relay Module Current 20A x6, 30A x4
Input from Grid 50A Max x2, 120V/240V
Input from SuperBase V 7,600W (3,800W x2)
Circuits Load (Grid Mode) 50A Max, 6,000W @120V; 12,000W @240V
Circuits Load (Backup Mode) 7,600W Max
ZenX Port Charging SuperBase V 7,200W Max (2x 3,600W @240V)
3,600W Max (2x 1,800W @120V)

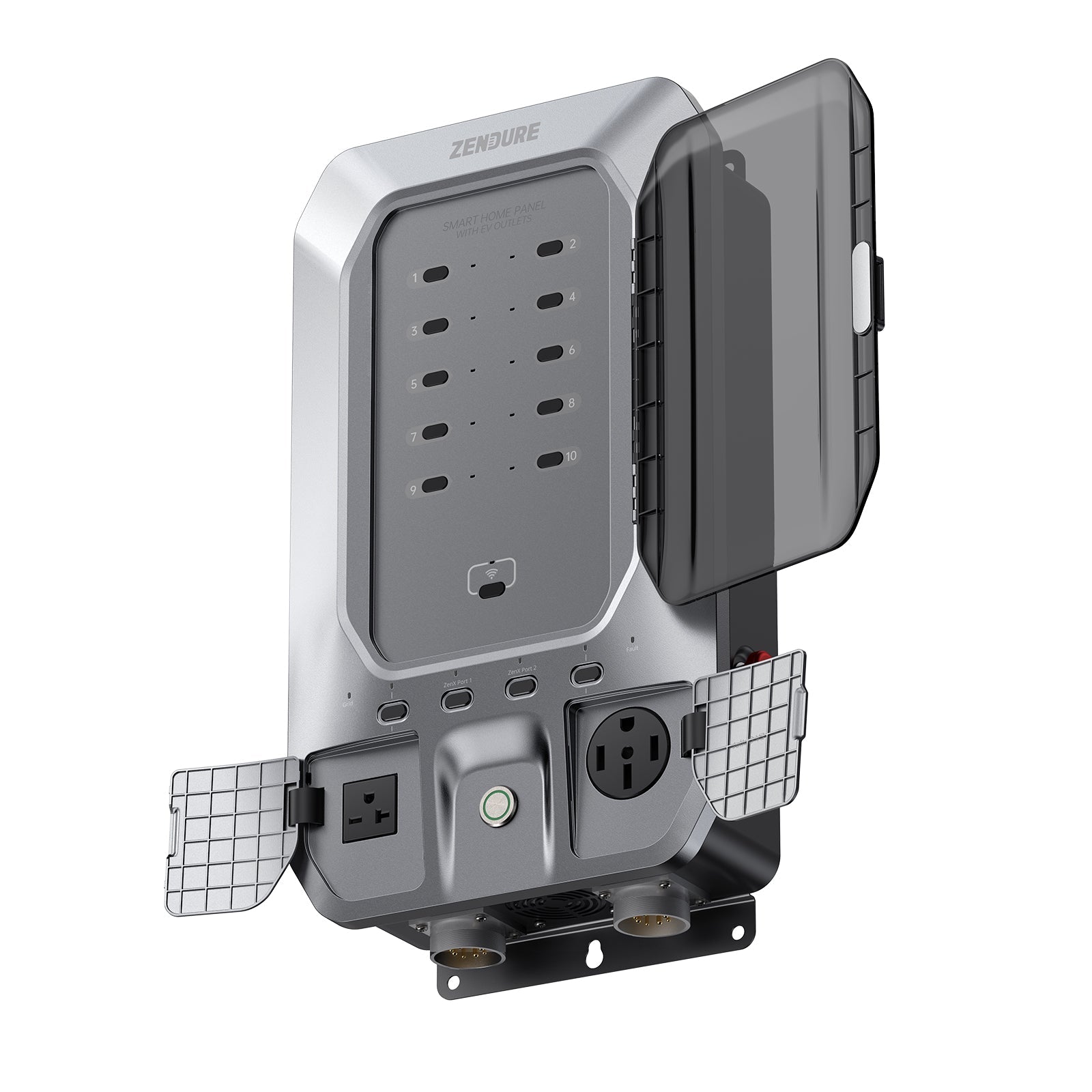

EV Outlets (Grid Mode Only) NEMA 14-50 40A Max, NEMA 6-20 16A Max, Total 50A
Smart App Compatible YES



For more information, please check SuperBase V - First Plug-and-Play Home Energy Storage System.
