Dimensions (L×W×H): 448×303.6×88 mm
Net weight (excluding accessories): 10.12 kg

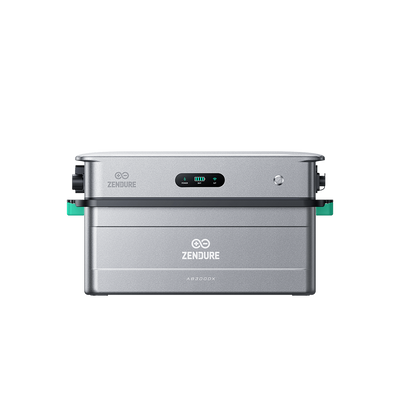

Yes. According to Section 12 of the German VAT Act, purchasing SolarFlow 2400 AC is VAT-exempt.

But please note that you can only benefit from duty-free sales in Germany.

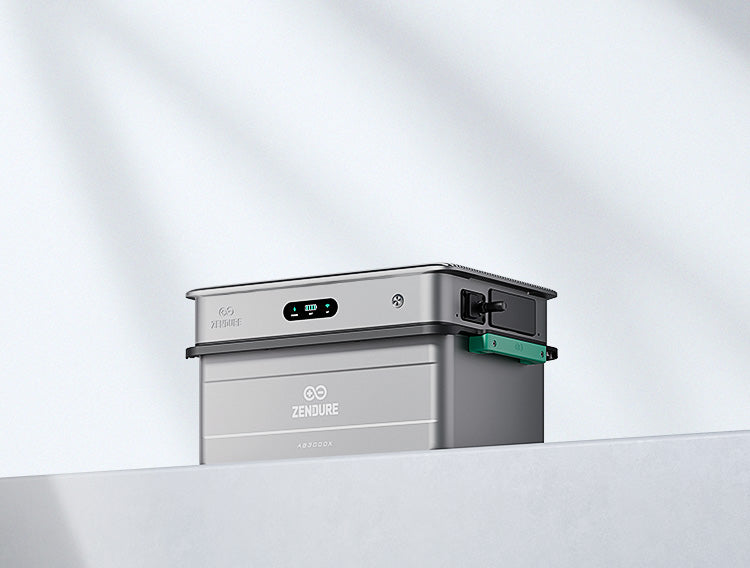

Yes, the SolarFlow 2400 AC is certified to !IMPORTANT! standards, allowing direct connection to standard household sockets.

Please consult the certification file here.

Yes, thanks to its plug-and-play design, the SolarFlow 2400 AC is designed for easy installation by the user.

SolarFlow 2400 AC supports charging the battery from the home grid, making it ideal for two household scenarios:

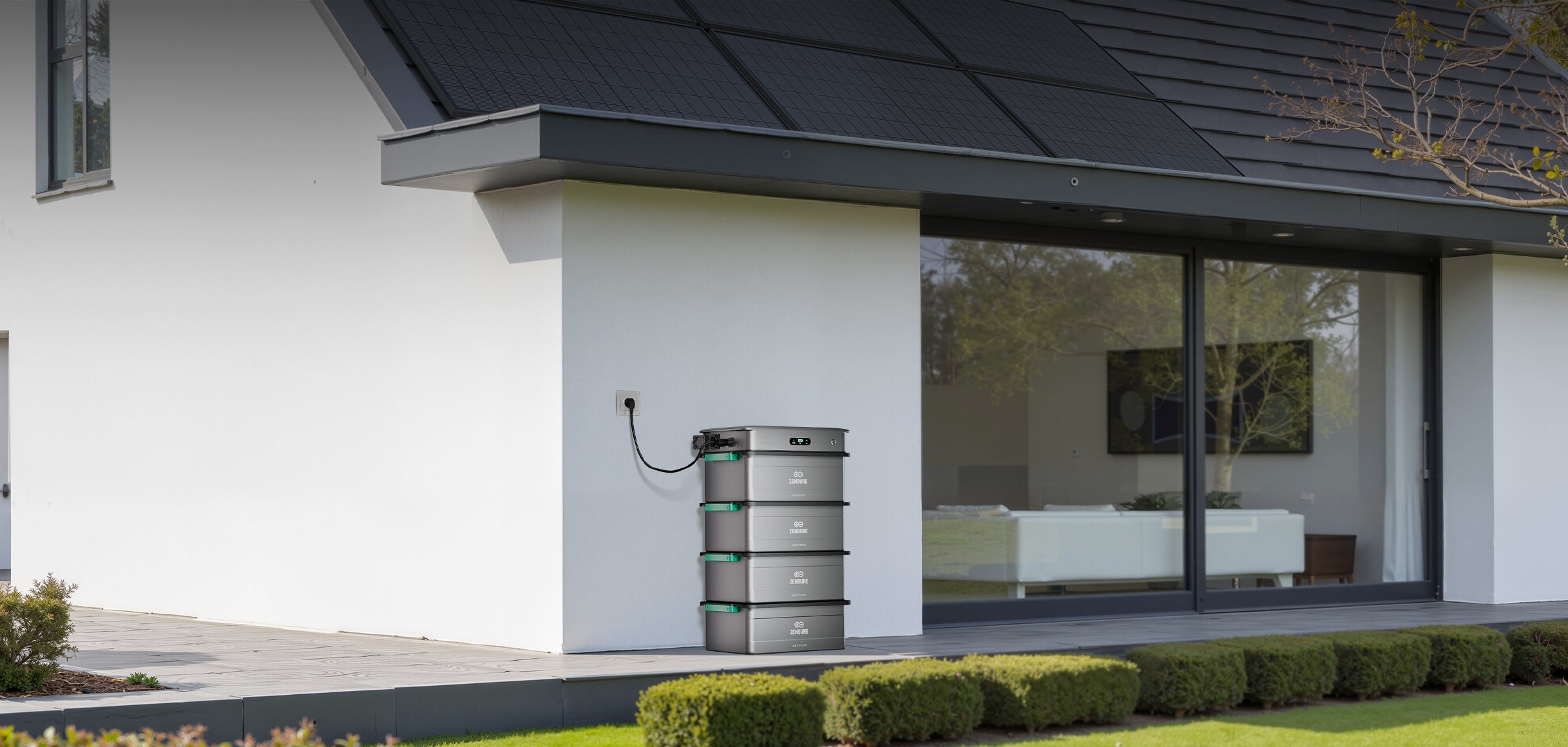

1. Homes with installed balcony or rooftop PV systems but without storage batteries.
SolarFlow 2400 AC stores solar energy generated during the day for later use, reducing electricity costs.

2. Dynamic electricity pricing scenarios.
The battery charges during low-tariff periods and discharges during peak hours, enabling self-sufficient energy use and reducing grid electricity purchases.

No, SolarFlow 2400 AC cannot connect to PV panels but can be used as a storage system for existing PV system.

Yes, SolarFlow 2400 AC requires a smart meter to monitor household power usage in real time and determine its charging/discharging status and power. Example: If the smart meter detects that your existing PV system is exporting power to the grid, charging will be activated.
If 800W of excess energy is detected, SolarFlow 2400 AC will charge at 800W.

When the SolarFlow 2400 AC System detects that the household requires grid power and the battery has sufficient charge, it will automatically initiate discharge.
Example: If 600W is needed, SolarFlow 2400 AC will discharge at 600W to meet the household demand.

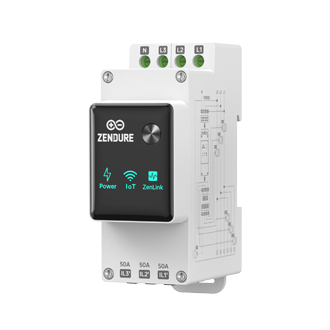

Supported smart meter models:  Zendure Smart Meter 3CT, Zendure Smart Meter D0 (Germany), Zendure Smart Meter P1 (Netherlands), Shelly Pro 3EM, Shelly 3EM.

Yes, you can plug the SolarFlow 2400 AC into a wall socket and easily install it via the Zendure app.
If you want to use multiple SolarFlow 2400 AC units, a professional electrician is required.

Thanks to third-generation semiconductor silicon carbide (SiC) technology, AC round-trip efficiency reaches up to 93%, significantly reducing energy losses and improving overall storage efficiency.

Yes, it supports charging the battery from the home grid, allowing storage of surplus PV energy, low-tariff electricity, or preventing battery over-discharge.

The default output power of a single SolarFlow 2400 AC is 800W, which can be set to 2400W.
If installing multiple units, ensure they are connected to separate circuits to prevent overload.

Its maximum output power is 2400W, but the default output power is 800W. To achieve 2400W operation, have an electrician install it on a dedicated circuit without other loads or connect it to a dedicated breaker in the distribution panel. You can then request a power upgrade to 2400W via the app.

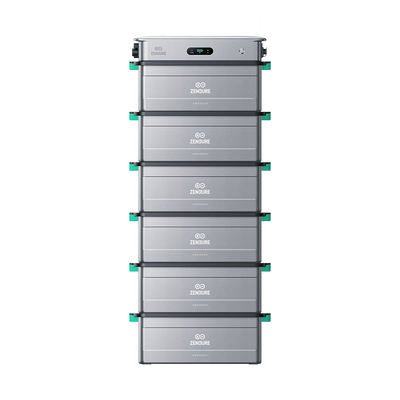

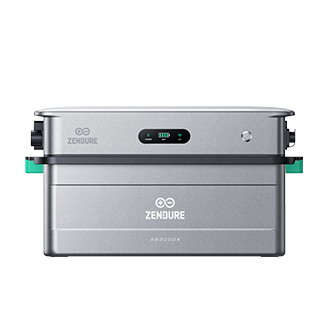

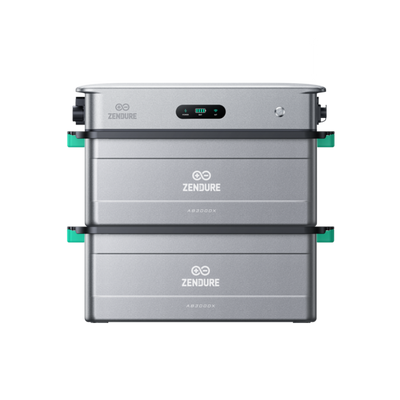

It supports AB3000X, with a maximum of 6 battery connections, expanding total capacity to 17.28kWh. It does NOT support AB1000/AB1000S/AB1000X/AB2000/AB2000S/AB2000X.

Yes, it has one off-grid socket, with a peak power of 3600W (10s) and a stable maximum output of 2400W. The off-grid function must first be enabled in the app. Once activated, SolarFlow 2400 AC can seamlessly switch to battery power within 15ms during a grid outage, ensuring continuous operation of devices connected to the off-grid interface.

Yes, it supports simultaneous use of off-grid and grid-tied functions, with a total power output not exceeding 2400W.

When using only the off-grid function, the off-grid AC interface has a maximum discharge power of 2400W.

IP65. The device does not maintain IP65 waterproof protection when the off-grid socket is in use (plugged in) or when the waterproof cover is not properly sealed.

Dimensions: 349.7*201.7*340mm,
Weight: approximately 25.9kg (excluding accessories and package).

Yes, in accordance with Section 12 of the German Value Added Tax Act (UStG), you do not have to pay VAT on the purchase of the SolarFlow 800 Pro.

But please note that you can only benefit from duty-free sales in Germany.

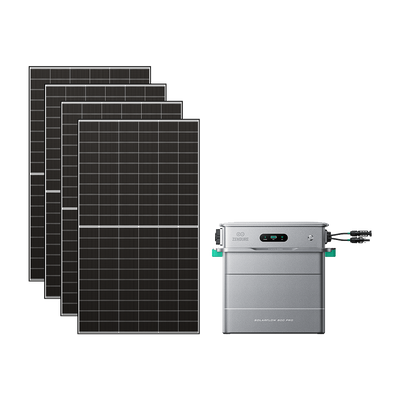

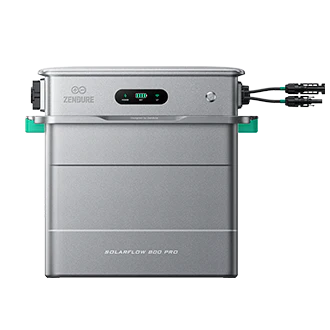

Yes, the SolarFlow 800 Pro is certified with VDE-AR-N 4105, NA/EEA-NE7: 2020, EN 50549 and can be directly plugged into a standard household socket.

Please consult the certification file here.

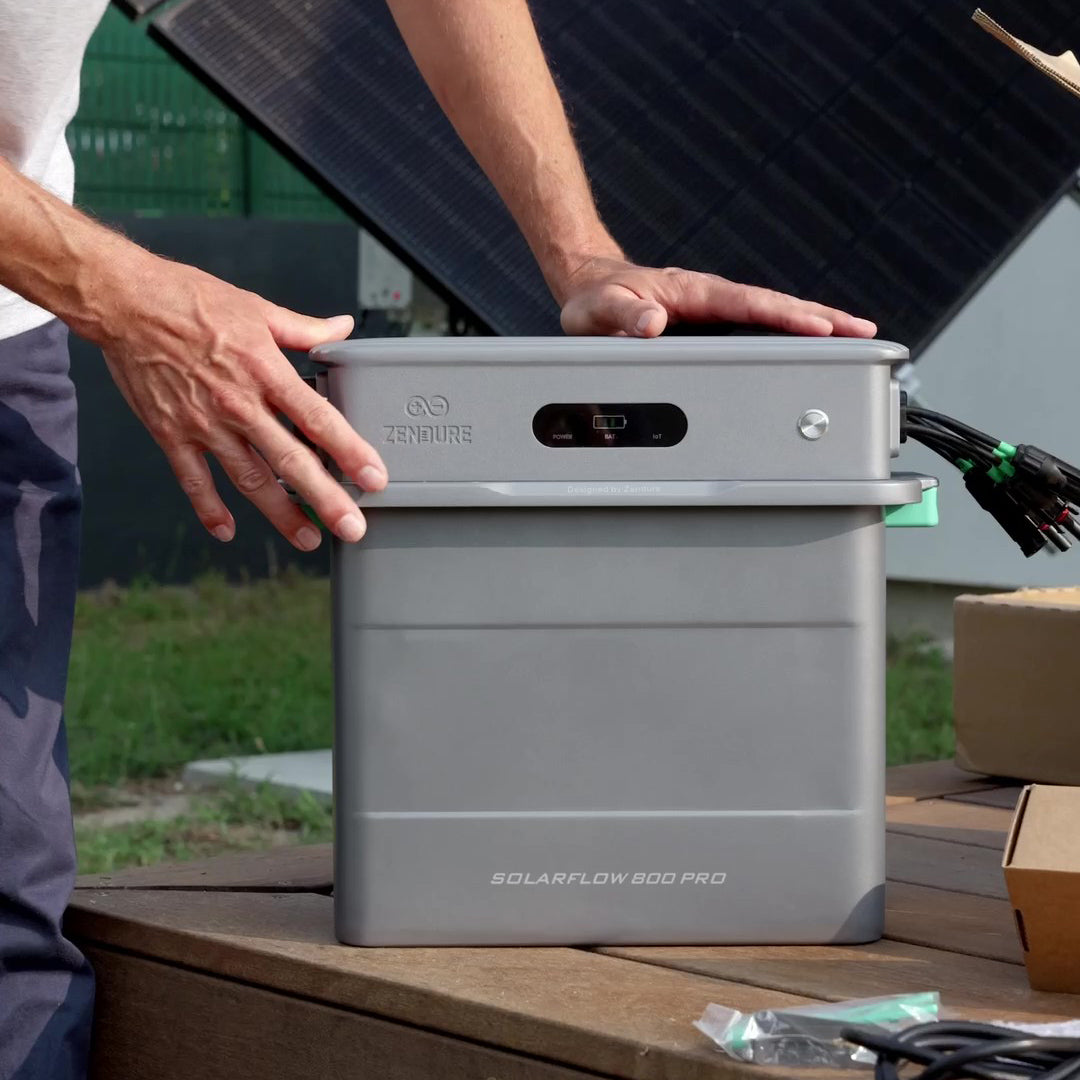

Yes, SolarFlow 800 Pro’s plug-and-play design makes installation easy for users.

SolarFlow 800 Pro optimizes your home energy usage with a combination of high-performance hardware and an AI-powered HEMS (Home Energy Management System), making your energy consumption smarter and more cost-efficient.

High-Performance Hardware: Equipped with a 2640W (4×660W) MPPT controller and a 1000W bidirectional inverter (1000W input & off-grid output, 800W grid-tied output), SolarFlow 800 Pro efficiently stores excess solar energy during the day (when paired with a battery) and supplies power to your home at night, reducing overall energy costs.

AI-Powered HEMS: Utilizing advanced AI algorithms, SolarFlow 800 Pro analyzes your solar generation, consumption patterns, weather forecasts, and electricity price fluctuations to dynamically adjust daily charging and discharging schedules. It charges at lower rates during off-peak hours (e.g., nighttime) and switches to battery power during peak hours, optimizing energy use and achieving up to 42% energy cost savings.*

*This data is based on Zendure lab tests under a dynamic electricity pricing model. Actual savings may vary depending on local electricity rates, system configuration, and household energy consumption habits.

1. Calculate annual energy generation: Select your location and the installed capacity of the solar system on the map. Combine the solar altitude angle, azimuth angle, and the tilt angle of the solar system to get the annual energy generation of the system.

2. Save on electricity bills: Annual savings (kWh/year) = Annual energy generation (kWh/year) × self-consumption rate × electricity price in Germany.
For example, using SolarFlow 800 Pro in Southern Germany with 2000W PV module and a smart meter:
Annual savings = 2260 kWh/year × 98% × 0.4€/kWh = 880€

Electricity prices vary by region and time, and our estimated electricity price may not reflect your actual cost. This may affect the final electricity cost calculation.

Sources : https://re.jrc.ec.europa.eu/pvg_tools/en/tools.html; https://www.energypriceindex.com/price-data.

Each MPPT input supports a maximum power of 660W, with an open circuit voltage (Voc) below 55V. Since solar panel output can vary significantly depending on weather conditions, it is recommended to connect solar panels with a power rating up to 1.5 times the MPPT's nominal power to ensure optimal performance.

Yes, as long as the operating voltage is between 14V and 55V. Do not exceed 55V to avoid permanent damage.

Yes, you can connect 2-3 panels (100W-350W each) in parallel on each solar connector. Ensure that the voltage of the panel array is between 14V and 55V.

It supports Zendure AB1000/AB2000/AB1000S/AB2000S/AB2000X batteries. You can mix AB1000 and AB2000 series batteries, with up to 5 additional stacked units, for a total capacity of up to 11,520Wh.

No, AB1000/AB1000S/AB1000X/AB2000/AB2000S/AB2000X are not compatible with AB3000X.

Yes, the SolarFlow 800 Pro system automatically schedules AC charging during off-peak hours via the Zendure APP for cost savings. Moreover, it auto-switches to AC charging mode using grid power when battery levels are critically low with poor PV generation, preventing potential battery damage.

Yes, it has one off-grid socket, with a peak power of 1200W (10s) and a stable maximum output of 1000W. The off-grid function must first be enabled in the app. Once activated, SolarFlow 800 Pro can seamlessly switch to battery power within 15ms during a grid outage, ensuring continuous operation of devices connected to the off-grid interface.

According to EU safety regulations, the SolarFlow 800 Pro will stop supplying power to the grid during a power outage.

However, you can use the off-grid outlet during power outage with max 1000W power.

Yes, it supports simultaneous use of off-grid and grid-tied functions, with a total power output not exceeding 1000W.

When using only the off-grid function, the off-grid AC interface has a maximum discharge power of 1000W.

Thanks to third-generation GaN semiconductor technology, energy loss is significantly reduced, enhancing overall energy storage efficiency.

On rainy or foggy days, solar power generation is significantly reduced, but the solar panels will continue to operate at a much lower efficiency. With batteries, you can store excess solar energy or charge them cheaply during off-peak hours to ensure uninterrupted power supply. This smart energy management system helps maintain cost savings even when sunlight is limited.

IP65.

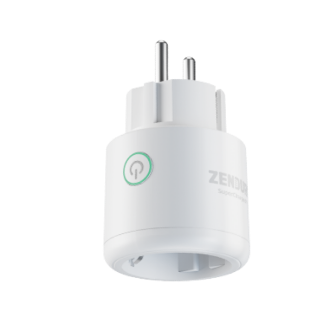

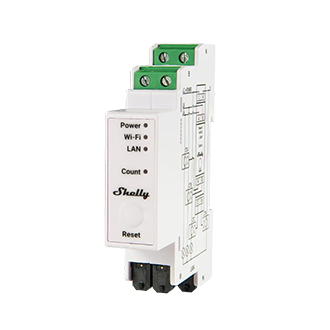

It can adjust power output based on real-time load data from smart meters or smart plugs (e.g., Zendure Smart Meter 3CT/D0/P1, Zendure Smart Plug, Shelly Pro 3EM, Shelly 3EM, Shelly Plus Plug S, everHome EcoTracker, everHome EcoTracker IR) and dynamic electricity pricing. This ensures efficient energy management and reduces energy waste, helping lower electricity bills

It can also charge or discharge based on fixed power settings for different times of the day, storing excess solar power during daylight hours.

Yes, it features intelligent discharge protection, keeping the battery charge above 5% (this lower discharge limit can be set by the user) and switches to AC or solar power when available to preserve battery life.

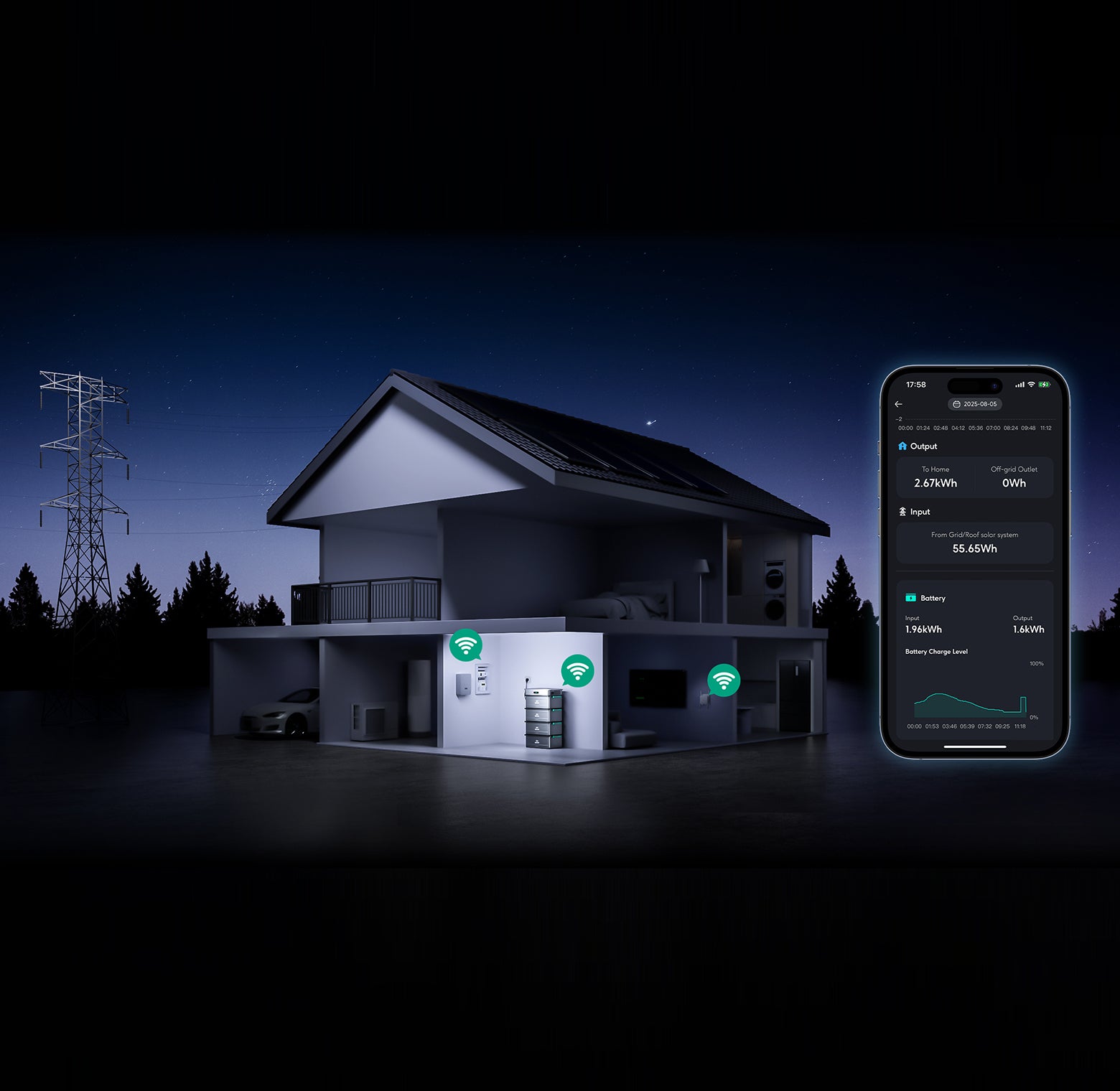

In the Zendure app, you can view real-time power generation data, historical statistics, battery charge state (SOC), charge/discharge power, and the energy consumed by the SolarFlow 800 Pro system.

It supports Wi-Fi (2.4GHz) and Bluetooth.

Yes, it is normal for the device to heat up slightly during use and will not affect performance. SolarFlow 800 Pro has overheat protection. Keep children and pets away from the device.

Grid safety requirements: Maintaining grid monitoring and protection functions

The grid-tied inverter must continuously monitor the grid status to comply with international and national safety standards (e.g., VDE-AR-N 4105 in Germany and UL 1741 in the United States).

Even when the inverter stops supplying power to the grid, it needs to remain in a low-power standby mode to monitor the grid’s status and detect when it becomes stable again. Once the grid is stable, the inverter can automatically restart and synchronize with the grid.

If the inverter were to completely power off, it would not be able to detect the grid status, potentially leading to delays in grid reconnection or incorrect operation when the grid recovers.

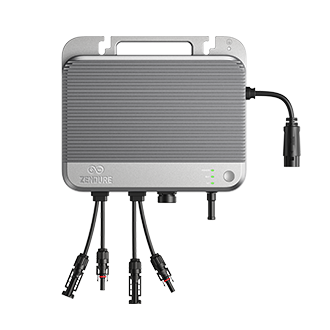

It uses a "striped housing" design for rapid heat dissipation, and its aluminum casing makes it lighter and more resistant to corrosion.

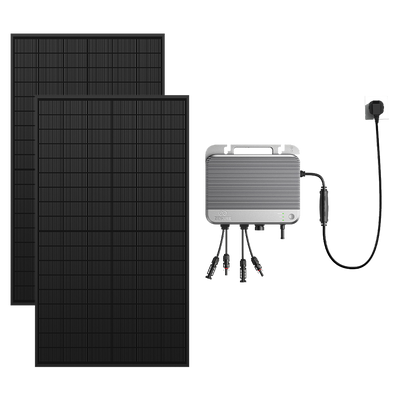

Yes. The SolarFlow 800 is a smart microinverter. When used with solar panels, the SolarFlow 800 can monitor solar energy generation and the output power to the grid, as well as control the power supplied to the home.

Dimensions: 274 x 231 x 47 mm, Weight: approximately 5kg (excluding accessories).

Yes. According to Section 12 of the German VAT Act, purchasing SolarFlow 800 is VAT-exempt. Visit our German website to enjoy tax-free pricing.

Yes, the SolarFlow 800 is certified with VDE-AR-N 4105, NA/EEA-NE7: 2020, EN 50549 and can be directly plugged into a standard household socket.

Please check the certification file here.

Yes, SolarFlow 800’s plug-and-play design makes installation easy for users. Watch this video for installation instructions:
Installation Guide for SolarFlow 800 with Solar Panel, Installation Guide for SolarFlow 800 with Solar Panel and Battery.

With a total 1200W MPPT controller and an 800W bidirectional inverter, SolarFlow 800 stores surplus solar energy (when a battery is installed) during the daytime and powers your home at night, reducing overall energy costs.

With time-of-use pricing, SolarFlow 800 automatically switches to battery power during peak-rate periods and recharges the battery during off-peak hours (such as overnight) to enable self-powered operation during high-demand daytime hours. This dual approach ensures continuous savings while maintaining energy independence.

1. Calculate annual energy generation: Select your location and the installed capacity of the solar system on the map. Combine the solar altitude angle, azimuth angle, and the tilt angle of the solar system to get the annual energy generation of the system.

2. Save on electricity bills: Annual savings (kWh/year) = Annual energy generation (kWh/year) × self-consumption rate × electricity price in Germany.
For example, using SolarFlow 800 in Southern Germany with 1000W PV module, one AB2000S battery, and a smart meter:
Annual savings = 1130 kWh/year × 98% × 0.4€/kWh = 440€

3. Save CO2: Saving 1 kWh of electricity = saving 0.997 kg of CO2.
The results may vary from actual usage due to factors such as weather, daytime hours, installation location of the modules, and others, which may lead to different results. Electricity prices vary by region and time, and our estimated electricity price may not reflect your actual cost. This may affect the final electricity cost calculation.

Sources: https://re.jrc.ec.europa.eu/pvg_tools/en/tools.html; https://www.energypriceindex.com/price-data.

Each MPPT input supports a maximum power of 600W, with an open circuit voltage (Voc) below 55V.

Since solar panel output can vary significantly depending on weather conditions, it is recommended to connect solar panels with a power rating up to 1.5 times the MPPT's nominal power to ensure optimal performance.

Yes, as long as the operating voltage is between 14V and 55V. Do not exceed 55V to avoid permanent damage.

Yes, you can connect 2-3 panels (100W-350W each) in parallel on each solar connector. Ensure that the voltage of the panel array is between 14V and 55V.

It supports Zendure AB1000/AB2000/AB1000S/AB2000S batteries. You can mix AB1000 and AB2000 series batteries, with up to 6 stacked units, for a total capacity of up to 11,520Wh.

Yes, the SolarFlow 800 system automatically schedules AC charging during off-peak hours via the Zendure APP for cost savings. Moreover, it auto-switches to AC charging mode using grid power when battery levels are critically low with poor PV generation, preventing potential battery damage.

Rainy or foggy days cut solar power, and solar panels still work at reduced efficiency. With batteries, store extra solar energy or charge cheaply during low-rate hours for uninterrupted power. This smart energy management maintains cost savings even when sunlight is scarce.

IP67. SolarFlow 800 provides a higher level of protection than products with only "water-resistant" IP65 or IP66 ratings.

1.It can adjust power output based on real-time load data from smart meters or smart plugs (e.g., Zendure Smart Plug, Shelly Pro 3EM, Shelly 3EM, Shelly Plus Plug S) and dynamic electricity pricing. This ensures efficient energy management and reduces energy waste, helping lower electricity bills.

2.It can also charge or discharge based on fixed power settings for different times of the day, storing excess solar power during daylight hours.

Yes, it features intelligent discharge protection, keeping the battery charge above 5% (this lower discharge limit can be set by the user) and switches to AC or solar power when available to preserve battery life.

In the Zendure app, you can view real-time power generation data, historical statistics, battery charge state (SOC), charge/discharge power, and the energy consumed by the SolarFlow 800 system.

It supports Wi-Fi (2.4GHz) and Bluetooth.

No, according to EU safety regulations, the SolarFlow 800 will stop supplying power during a power outage and cannot be used as a backup power system.

Yes, it is normal for the device to heat up slightly during use and will not affect performance. SolarFlow 800 has overheat protection. Keep children and pets away from the device.

Grid safety requirements: Maintaining grid monitoring and protection functions

The grid-tied inverter must continuously monitor the grid status to comply with international and national safety standards (e.g., VDE-AR-N 4105 in Germany and UL 1741 in the United States).

Even when the inverter stops supplying power to the grid, it needs to remain in a low-power standby mode to monitor the grid’s status and detect when it becomes stable again. Once the grid is stable, the inverter can automatically restart and synchronize with the grid.

If the inverter were to completely power off, it would not be able to detect the grid status, potentially leading to delays in grid reconnection or incorrect operation when the grid recovers.

It uses a "striped housing" design for rapid heat dissipation, and its aluminum casing makes it lighter and more resistant to corrosion.

No, SolarFlow 800 is not compatible with Ace 1500. It's not recommended to do that for a better experience.

No.
